LHP Electric Motors – Flame Proof and Brake Motors
IE4/IE3/ IE2 motors are built around standard 3-phase motors using special materials. These motors from LHP are developed in accordance with energy-saving guidelines from IEC (IEC/ EN 60034-30-1:2014) and approved by BIS as per the latest IS 12615. These are available in CI material from 0.09 kW to 1000 kW and in aluminum material from 0.18 KW to 7.5 KW with protection class IP55, IP56, IP57, IP66 and IP67 as optional.

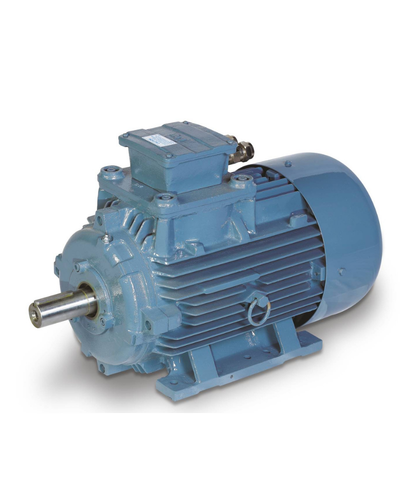

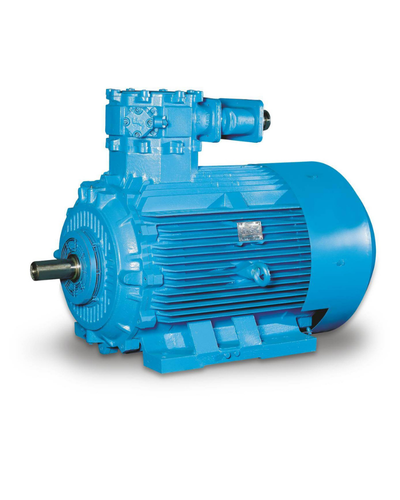

Flame- Proof Motors
LHP Flame-Proof Motors are designed for safe operation in hazardous environments. Their robust construction prevents internal sparks from reaching the surrounding explosive atmosphere. Available in IE2, IE3, and IE4, these motors comply with IS/IEC/EN 60079-1 standards. They are suitable for Zones 1, 2, 21, and 22, with gas groups I, IIA, IIB, and IIC and temperature classes up to T6. These are available upto 500 KW rating and in protection class IP55, IP56, IP57, IP66 and IP67 as optional.

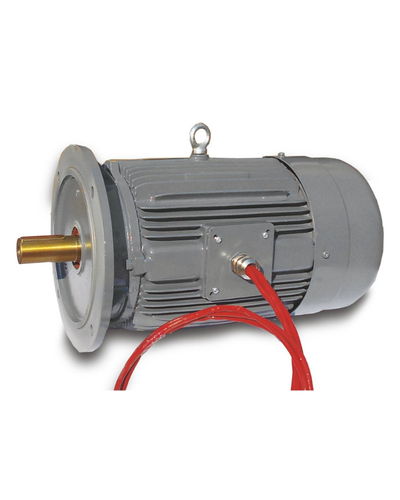

Smoke Extraction Motors
LHP Inferno Series Motors are designed for smoke extraction and ventilation in closed, confined, and crowded spaces. Complying with EN 12101-3, these motors help maintain air circulation and extract smoke during fire emergencies, improving visibility for firefighting operations. They are available for continuous operation at temperatures of 180°C, 200°C, 250°C, 300°C, and 400°C for up to two hours and up to 315 KW rating with protection class IP55, IP56, IP57, IP66 and IP67 as optional.
Crane and Hoist Duty Motors
LHP Crane and Hoist Duty Motors are specially designed for demanding applications requiring high starting torque, low starting current, and frequent start-stop operations. These motors are suitable for cranes, hoists, and other material-handling equipment where robust and dependable operation is essential. LHP offers a wide range of duty classes from S1 to S9, complying with IS 12824 standards. These are available from range 0.37 kW to 315 kW with protection class IP55, IP56, IP57, IP66 and IP67 as optional.

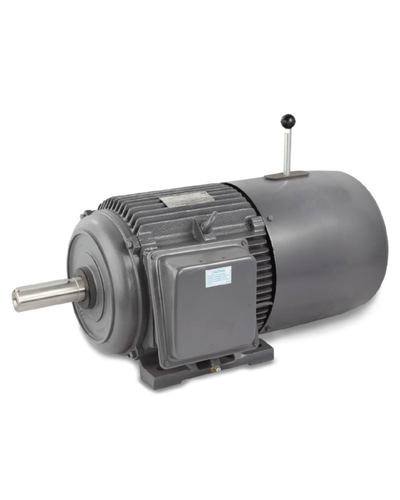

Brake Motors
LHP Brake Motors are designed for reliable and safe stopping in applications such as packaging lines. They use fail-safe electromagnetic brakes mounted on the rear side of the motor. The brakes operate on DC supply and engage automatically when the power is switched off. A built-in rectifier in the terminal box converts AC power to DC for smooth brake operation. These motors are available from range 0.09 kW to 90 kW with protection class IP55, IP56, IP57, IP66 and IP67 as optional.
Roller Table Motors
LHP Roller Table Motors are specially designed for conveyors used to move steel billets through roller mills in steel plants. These motors comply with IPSS No. 1-03-007-14 and are available up to 500KW and 450 frame size in 4, 6, and 8 poles. They can operate reliably in extreme ambient temperatures from -35°C to +70°C. Options include online greasing, PTC thermistors, RTD/BTD sensors, encoders, and electromagnetic brakes.
Encoder Motors
These motors feature an inbuilt incremental encoder that provides real-time feedback for accurate and reliable motor control. Encoders are available for motors up to 315 kW with a robust bearing and safety-lock design. Large bearings and solid construction ensure high stability against vibrations and installation errors. The encoder is integrated under the fan cowl, making it suitable for harsh outdoor applications.
Naval and Marine Duty Motors
LHP offers reliable Naval and Marine Duty Motors designed for continuous operation in harsh saline and marine environments. These motors are robust and designed to withstand heavy vibrations, shocks, and demanding operating conditions. The range includes motors up to 1000 kW in IE2, IE3, and IE4 efficiency classes. LHP motors comply with relevant Naval and marine standards and are supplied to the Indian Navy, shipbuilders, and maintenance agencies.
Railway Auxiliary Motors
Railway electrification offers lower running and maintenance costs along with reduced air and noise pollution. Traction motors are used for propulsion, while auxiliary motors support various locomotive functions. These 3-phase AC squirrel-cage induction motors are robust, reliable, and require minimal maintenance. LHP has been supplying quality auxiliary motors to the Railways for over 20 years.
Multi-speed Motors
LHP Multi-speed Motors are extensively used for their instant switch-over to different speeds without jerks. LHP Multi-speed motors demonstrate robust performance and are durable in an environment where frequent speed switch-over is essential. They are available in a wide range up to 1000 kW and frame sizes up to 450. Dual speed and up to 32 poles motors can be offered.

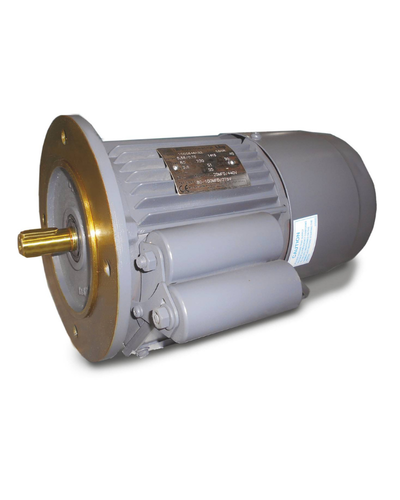

Single Phase Motor
LHP Single-Phase Capacitor Start Capacitor Run Motors are designed to provide high starting torque and reliable performance for various industrial applications. Available in the range of 0.18 kW to 1.5 kW, with 3000 and 1500 RPM options, they are offered in multiple mounting configurations. These motors feature IP55 protection, Class F insulation, 230 V operation, and S1 duty. They are commonly used in blowers, fans, and centrifugal pumps.
