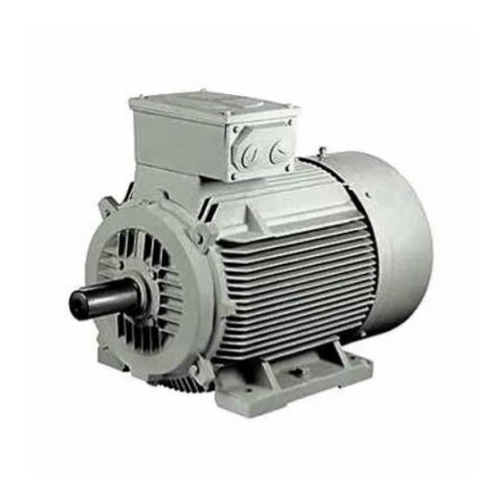

These are Super Premium Efficiency motors starting from 2.2KW to 275 KW rating in 2, 4, 6 poles. Their housing is made of cast iron with mounting feet integral to the housing. These motors are covered under IS(12615-2011) and deliver high energy efficiency, lower power consumption and reliable performance for continuous industrial operations.

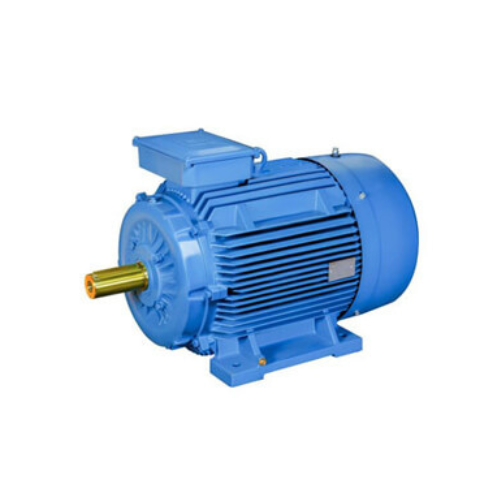

CHAMPION Series covers IE2, IE3 and IE4 efficiency upto 315KW in 2,4,6 and 8 poles. These are designed for high-performance, reliable operation in demanding industrial applications. These are available in IC411 and IC466 cooling methods.

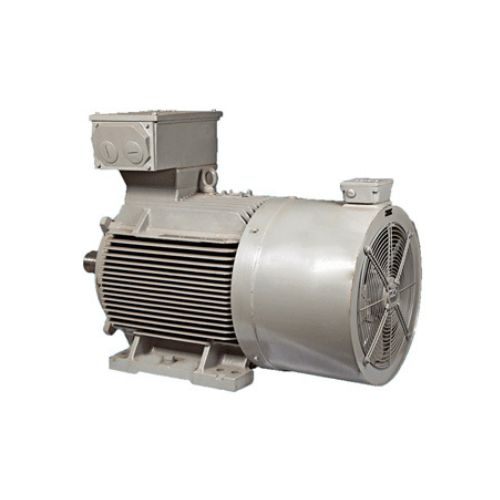

N Compact Motors are energy efficient and helps in reducing cost. With its TEFC design(IC411/ IC466) these motors have low noise and vibration level, High power to weight ratio, dual cooling circuit for uniform heat dissipation. Range 250-1250 KW.

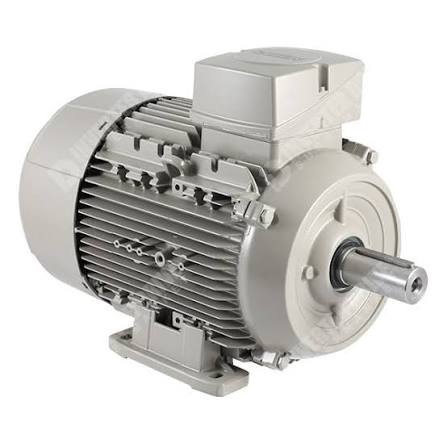

These motors comes under Innomotics 1LE7 series and are available from 0.37-315 KW in 2, 4, 6, 8 poles. Motor material is cast iron with mounting feet integral to the housing.

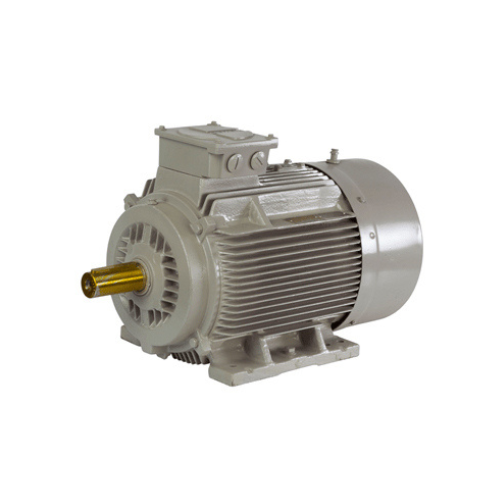

Innomotics Flame proof motors combine high efficiency with reliable protection in a single robust package. Designed for hazardous environments, these motors ensure safe operation by preventing ignition of explosive gases, while delivering exceptional performance and energy savings. These are available from 0.75- 90 KW(2 P), 0.55- 90KW(4 P), 0.37- 55 KW(6 P) in IE3 efficiency and cast iron casing. Type of protection is – Ex db (Ex tb & Ex tc are available on request) and temperature class is T4. Degree of Ingress protection is IP66.

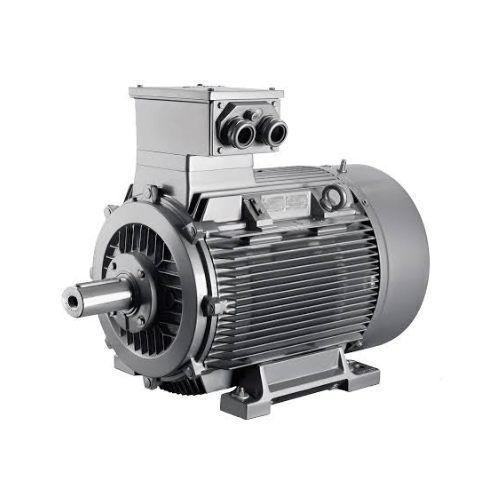

1LE7 Series are compact, lightweight, and energy-efficient three-phase induction motors designed for reliable industrial performance. Built with a durable aluminum housing, these motors offer excellent heat dissipation, corrosion resistance, and easy handling, making them ideal for general-purpose applications. These are available in IE2, IE3 efficiency classes from 0.18- 2.2 KW( upto 90 frame) in 2, 4, 6 poles.
