Gearboxes

Home > Gearboxes

Industrial & Precision reduction gearboxes from Bonfiglioli



We offer reliable Bonfiglioli gearbox solutions from their vast basket of gearboxes, designed for efficient power transmission, high performance, and long-lasting operation. Bonfiglioli gearboxes provide excellent torque, smooth operation, and compact designs suitable for various industrial applications. Allied Automation provides complete support, including gearbox selection, technical assistance, installation guidance, and after-sales service.

Helical Gearbox

1

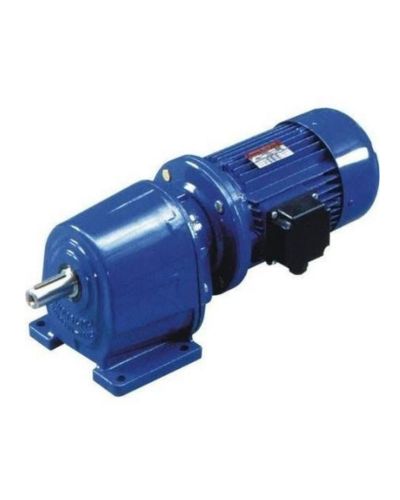

Type Inline helical
Version Foot/ Flange
Ratio 4 to 200
Torque max 2800 Nm
KW Up to 45 kW
Application conveyors, material handling, packaging,
2

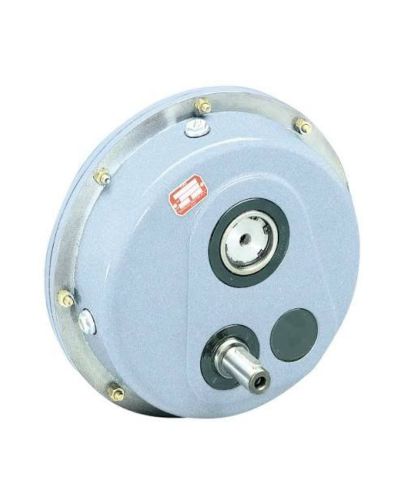

Type Shaft mounted TA
Version Foot/ Flange
Ratio  5:1 – 31
Torque  max 17000 Nm
KW  Up to 226 kW
Application Belt Conveyors, Bucket Elevators, Material Handling, shredder

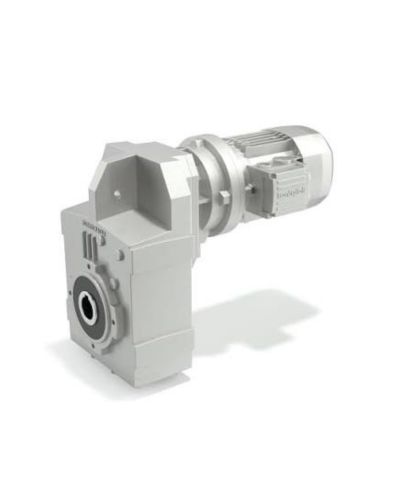

3
Type Parallel shaft helical
Version Foot/ Flange
Ratio   6 to 2099
Torque  max 140000 Nm
KW  Up to 125 kW
Application conveyors, material handling

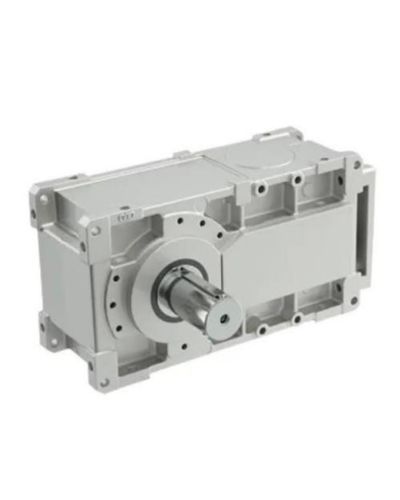

Untitled design (1)
Type  Parallel shaft heavy duty
Version  Foot/ Flange
Ratio  7.1 – 500
Torque  max 209900 Nm
KW  Up to 515 kW
Application Heavy-Duty Conveyors, Crushers, Mixers, Agitators, Hoists, Material Handling

Bevel Helical Gearbox

1

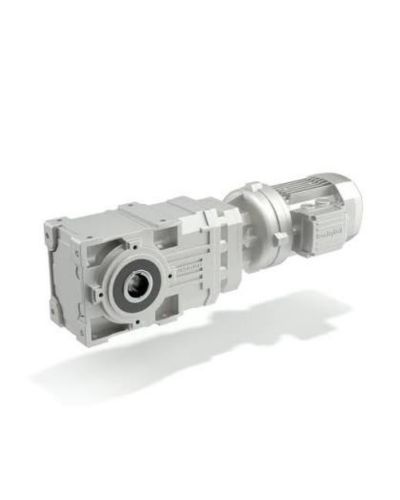

Type A series Bevel
Version Foot/ Flange
Ratio  5 – 1600
Torque Up to 14000 Nm
KW Up to 150 kW
Application Conveyors, Packaging Machines, Food Processing, Material Handling, Automated Systems

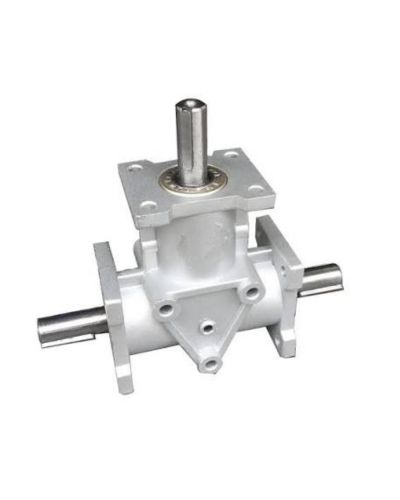

2
Type RAN series Bevel
Version Foot/ Flange
Ratio  1 – 2
Torque Up to 600 Nm
KW 0.15 – 90 kW
Application  Where thrust load is large e.g. screw jacks, Material Handling, Automated Lines
3

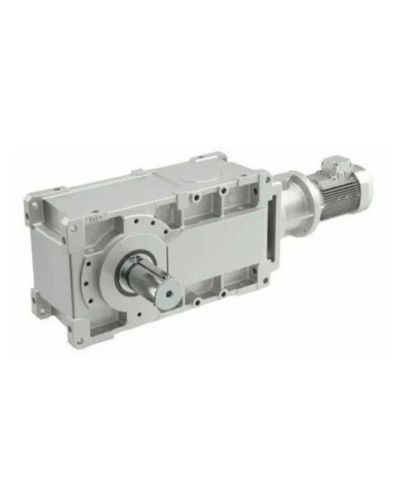

Type HDO series heavy duty
Version Foot/ Flange
Ratio 5.5 – 500
Torque Up to 209900 Nm
KW Up to 650 kW
Application Steel Plants, Cement Plants, Mining, Crushers, Heavy Conveyors, Bucket Elevators

Worm Gearbox

1

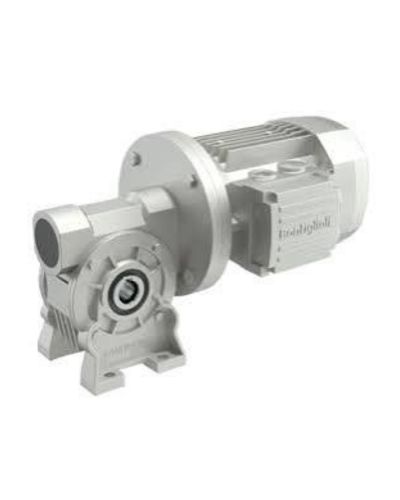

Type W/WR series geared motor
Version Foot/ Flange
Ratio 7 – 300
Torque Up to 1000 Nm
KW 0.33 – 21 kW
Application Conveyors, Packaging Machines, Material Handling, Agitators, General Industrial Machinery

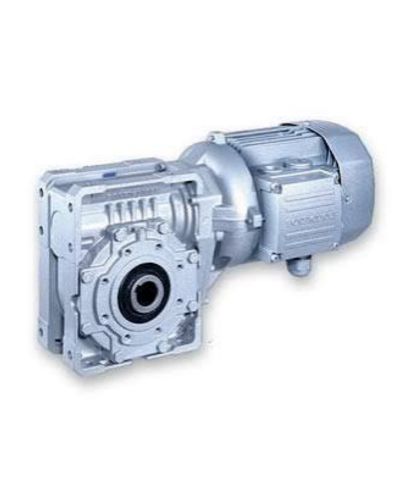

2
Type VF/VFR series geared motor
Version Foot/ Flange
Ratio  7 – 300
Torque Up to 4200 Nm
KW 0.04 – 60 kW
Application Small Conveyors, Packaging Machines, Food Processing, Bottling Machines, Material Handling

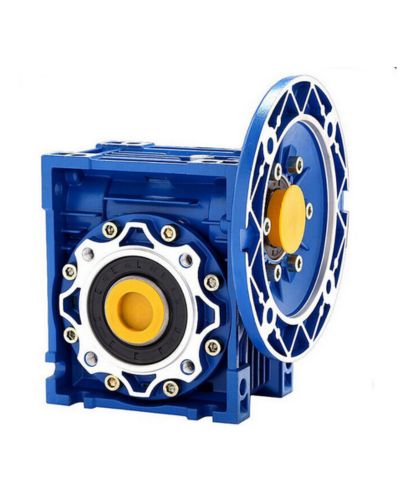

Untitled design (2)
Type Lightly duty geared motor
Version Foot/ Flange
Ratio 5 – 100
Torque Up to 2000 Nm
KW  0.12 – 35 kW
Application Small Conveyors, Packaging, Filling Machines, Small Material Handling Systems, Agitators

Planetary Gearbox

2

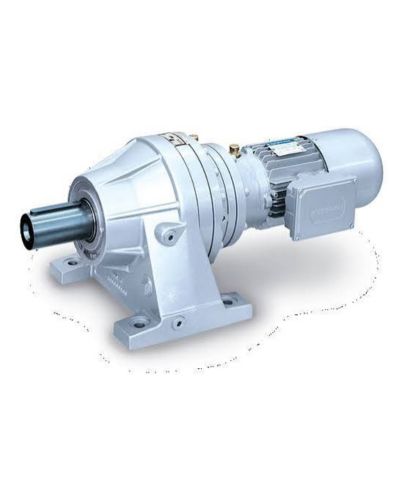

Type Inline 300L series
Version Foot/ Flange
Ratio 3.48 – 2692
Torque Up to 2000000 Nm
KW 0.07 – 200 kW
Application Mixers, Extruders, Material Handling, shredder, crystallizer
1

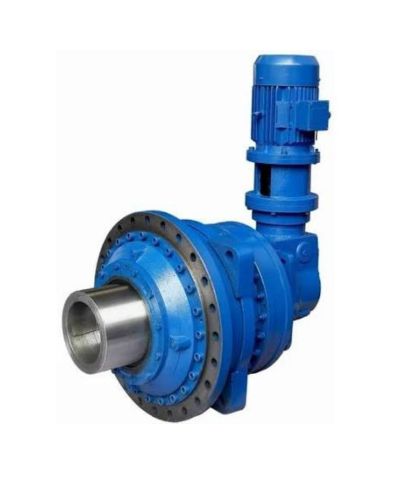

Type Right angle 300L series
Version Foot/ Flange
Ratio 0.07– 953
Torque Up to 655000 Nm
KW 0.12 – 150kW
Application Lifting Systems, Mixers,  Material Handling, shredders
3

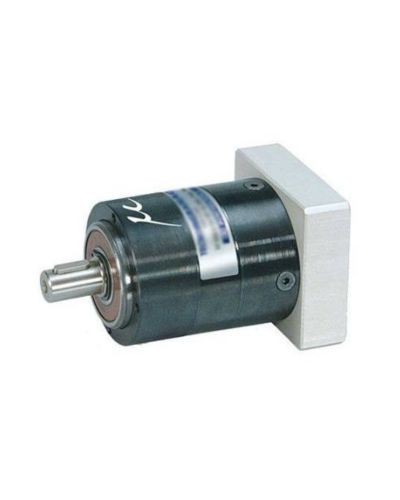

Type Precision planetary gearbox
Version Flange
Ratio 3– 100
Torque Up to 1000 Nm
KW  Backlash <= 2-17 arc min.
Application Robotics, Servo Systems, CNC Machines, Gantry Systems, Pick & Place, Solar, Machine Tools, Antenna
